DIGITAL CLASS & SMART BOARDS
|
|
Features
- Say Goodbye to Traditional Whiteboard Problems
- No More wiping off the whiteboard
- Face the audience all the time.
- You can have your own size of interactive white board.
- Annotate over any image on their PC screen.
- Collaborate in group settings with electronic whiteboard tools.
- Record voice and notes in a compressed file and post it to the web or e-mail it.
- Write and recall notes on pre-drawn templates or on any computer application.
- Also available in Plasma/Rear Blackboard models.
|

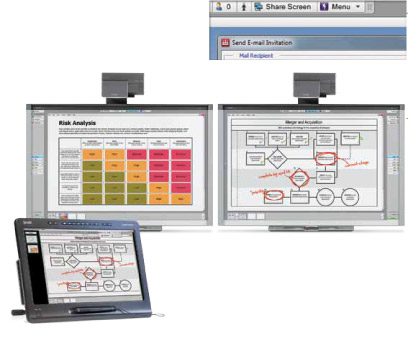

SMART Board 800 series interactive whiteboard systems
The 800 series combines our largest interactive surfaces with ultra-short-throw projectors, offering you flexibility, appealing design and a natural touch and writing experience. These interactive whiteboard systems are a great choice for virtually any environment.
|

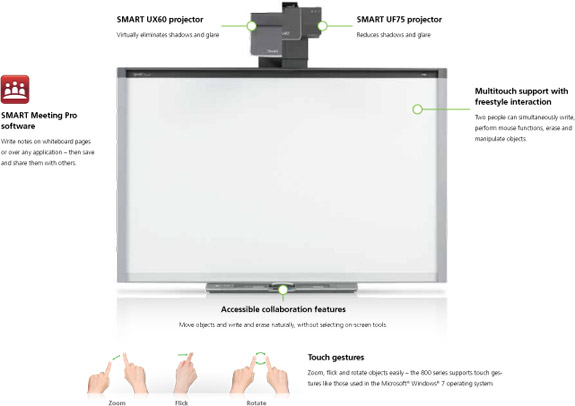

Hilights
SMART UX60 projector: Virtually eliminates shadows and glare
SMART UF75 projector: Reduces shadows and glare
SMART Meeting Pro software: Write notes on whiteboard pages or over any application – then save and share them with others.
Multitouch support with freestyle interaction: Two people can simultaneously write, perform mouse functions, erase and manipulate objects.
Accessible collaboration features: Move objects and write and erase naturally, without selecting on-screen tools.
Touch gestures: Zoom, flick and rotate objects easily – the 800 series supports touch gestures
like those used in the Microsoft® Windows® 7 operating system.
Key Features:
Superior image quality: Each system includes an HD-ready, ultra-short-throw projector that virtually
eliminates shadows and glare.
Durable surface: The 800 series features a hard-coated, low-gloss steel surface optimised for both
projection and easy cleaning.
Support for multiple displays: Connect up to eight interactive displays to a single computer. Users can write and share content simultaneously on any of the connected surfaces.
Object awareness: SMART’s proprietary DViT® (Digital Vision Touch) technology tracks and identifies the actions of users – it recognises when users switch between a finger, a pen or an eraser. Two people can also write with a
pen, erase with their palms or fists and move objects with their fingers independently – without having to press buttons or access on-screen menus.
Freestyle interaction: Two people can instantly start working individually or together to complete actions, such as writing in digital ink or moving objects with their fingers. It's perfect for freestyle collaboration
and brainstorming.
Accessible collaboration features:
All the tools users need to interact are right at their fingertips. The pens, eraser and function buttons are conveniently located at the front of the interactive whiteboard. Participants can also connect USB devices, and volume controls are easily accessible.
| 885ix | 885i |
880i |
| Projector throw distance | 26.5cm (10 3/8") | 56.7cm (22 1/4”) | 59.1cm (23 1/4") |
| Projector throw distance | 26.5cm (10 3/8") | 56.7cm (22 1/4”) | 59.1cm (23 1/4”) |
| Active screen size | 221cm (87”) diagonal | 221cm (87”) diagonal | 195.6cm (77”) diagonal |
| Aspect ratio | 16:10 | 16:10 | 4:3 |
| Resolution | 720p WXGA | 720p WXGA | 720p XGA |
| Interactive whiteboard dimensions | 199.4cm W x 129cm H x 16.5cm D (78 1/2” x
51 1/8” × 6 1/2” (199.4 × 129.9 × 16.5 cm) | 199.4cm W x 129cm H x 16.5cm D (78 1/2” x
51 1/8” × 6 1/2” (199.4 × 129.9 × 16.5 cm) | 168cm W x 135.6cm H x 16.5cm D (66 1/8” x 53
3/8” x 6 1/2”) |
| Available as an appliance-based model | Yes | Yes | Yes |
|
SMART Board 8000 series interactive flat panels
Combining high-definition, LCD flat-panel displays with integrated touch and writing capabilities, the SMART Board 8000 series interactive flat panels offer sophisticated interaction with digital content.
|

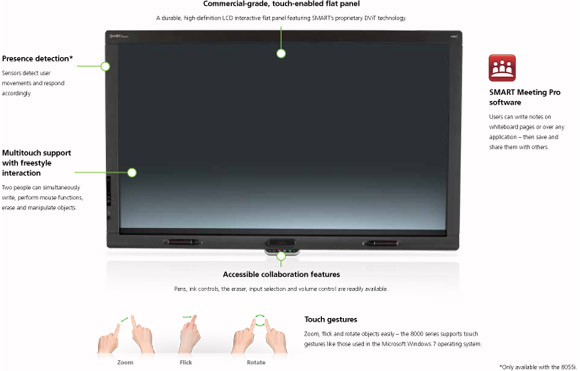

Hilights:
Commercial-grade, touch-enabled flat panel: A durable, high-definition LCD interactive flat panel featuring SMART’s proprietary DViT technology.
Presence detection*: Sensors detect user movements and respond accordingly.
Multitouch support with freestyle interaction: Two people can simultaneously write, perform mouse functions, erase and manipulate objects.
SMART Meeting Pro software: Users can write notes on whiteboard pages or over any application – then save and share them with others.
Accessible collaboration features: Pens, ink controls, the eraser, input selection and volume control are readily available.
Touch gestures: Zoom, flick and rotate objects easily – the 8000 series supports touch gestures like those used in the Microsoft Windows 7 operating system.
*Only available with the 8055i.
Key Features:
Freestyle interaction : Two people can instantly start working individually or together to complete actions, such as writing in digital ink or moving objects with their fingers. It’s perfect for freestyle collaboration and brainstorming.
Object awareness: SMART's proprietary DViT (Digital Vision Touch) technology tracks and identifies the actions of users – it recognises when users switch between a finger, a pen or an eraser. Two people can also write with a pen, erase with their palms or fists and move objects with their fingers independently – without having to press buttons or access on-screen menus.
Elegant, sophisticated design: The professional design and crisp, eye-catching visuals are perfect for any high-end workspace.
Commercial-grade, touch-enabled flat panel: Our durable, high-definition LCD interactive flat panels are
designed to withstand the demands of commercial use, featuring hardened, scratch-resistant glass screens. Enhanced by DViT technology, the flat panels deliver superior touch performance, an exceptional digital ink experience and bright, crisp 1080p images.
Support for multiple displays : Connect up to eight interactive displays to a single computer. Users can write simultaneously and share content and applications by “pushing” them to any of the connected interactive displays.
Accessible collaboration features :All the tools that users need to interact are right at their fingertips. The pens, eraser and function buttons are conveniently located at the front of the interactive display. Participants can also connect USB devices and volume controls are easily accessible.
| 8055i | 8070i |
| Active screen size | 140cm (55”) diagonal | 178 cm (70”) diagonal |
| Aspect ratio | 16:9 | 16:9 |
| Resolution | Full-HD 1080p (1920 h x 1080 v) | Full-HD 1080p (1920 h x 1080 v) |
| Presence detection | No | No |
| Dimensions | 133.0cm W x 82.0cm H x 9.3cm D
(52 3/8” x 32 5/16” x 3 11/16”) | 168.5cm W x 103.7m H x 33.6cm D
(66” x 41” x 8 1/2”) |
Available as an
appliance-based model | Yes | Yes |
|

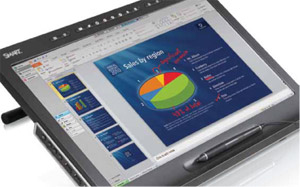

SMART Podium interactive pen display
The precise writing experience and intuitive capabilities of the SMART Podium interactive pen display turn dispersed collaboration and large-room presentations into dynamic, media-rich events.

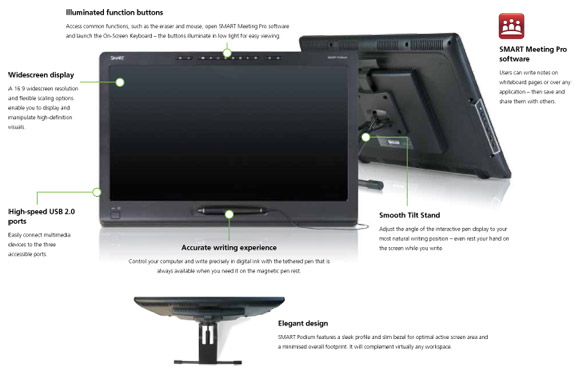

Hilights:
Illuminated function buttons: Access common functions, such as the eraser and mouse, open SMART Meeting Pro software and launch the On-Screen Keyboard – the buttons illuminate in low light for easy viewing.
Widescreen display: A 16:9 widescreen resolution and flexible scaling options enable you to display and
manipulate high-definition visuals.
High-speed USB 2.0 ports: Easily connect multimedia devices to the three accessible ports.
SMART Meeting Pro software: Users can write notes on whiteboard pages or over any application – then save and share them with others.
Smooth Tilt Stand: Adjust the angle of the interactive pen display to your most natural writing position – even rest your hand on the screen while you write.
Accurate writing experience: Control your computer and write precisely in digital ink with the tethered pen that is always available when you need it on the magnetic pen rest.
Elegant design: SMART Podium features a sleek profile and slim bezel for optimal active screen area and a minimised overall footprint. It will complement virtually any workspace.
Key Features:
Integration with Microsoft PowerPoint presenter view:
Maintain a private view of your presentation material, including all slides and speaking notes, whilst controlling what your audience sees on the screen or interactive whiteboard or flat panel. Use the controls on SMART Podium to switch ink
colours, move between slides and write speaking notes as you present.
DViT technology: SMART Podium features SMART’s proprietary DViT (Digital Vision Touch) technology. With cameras incorporated in the bezel to detect pen touch and movement, DViT technology provides a responsive, accurate writing experience
Simple installation: Connect your computer, SMART Podium and projector using USB and a DVI or VGA cable, so that all devices will display the same image simultaneously.
Tethered pen: Control your computer from SMART Podium and comfortably write over any application with the battery-free tethered pen. Because the pen is the point of contact on the interactive screen, you can rest your hand on the screen whilst writing notes. You can rest the pen in the magnetic pen rest when it’s not in use.
| 518 | 524 |
| Active screen size | 47cm (18.5”) diagonal | 61cm (24”) diagonal |
| Aspect ratio | 16:9 | 16:9 |
| Resolution | 720p | 1080p |
| Dimensions | 46.7cm W x 33.0cm H x 7.6cm D
(18 3/8” X 13” x 3”) | 59.3cm W × 40.1cm H × 7.6cm
D (23 5/16” x 15 13/16” x 3”) |
| Weight (with stand) | 8.9kg (19lb 11oz) | 12.5kg (27lb 6oz) |
Available as an
appliance-based model | No | No |
|
|
SMART Meeting Pro software
With touch-enabled whiteboarding features, superior digital ink capability and flexible options for saving your work,
SMART Meeting Pro software makes it easy to share content and capture ideas in powerful, engaging ways.
Hilights:
Automatic setup for Bridgit: Share screens instantly with remote participants, manage data conferencing features and connect all invited meeting rooms automatically when you have Bridgit conferencing software.
Meeting productivity tools: Access meeting resources and attendee details, monitor meeting time, extend room bookings and quickly start and end meetings through integration with Microsoft Exchange.
Simple interface: Toggle between your desktop and your whiteboard, access meeting management features, select content options and enable pen features with the easy-to-use toolbar.
SMART GoWireTM auto-launch cable: Guests or occasional users can use SMART Meeting Pro software without installing it on their laptops.
SMART InkTM:Write in digital ink over any application, document or webpage, save your work in a variety of ways and share it immediately.
Business content gallery: Access ready-made templates from an available gallery of images and tools – you can use existing content or create your own and save for reuse.
Key Features:

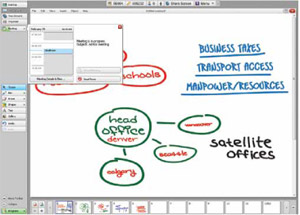

Interactive whiteboarding features:
Use unlimited interactive whiteboard pages and easily jump from page to page. Use shapes, lines, text, undo and redo, resize, rotate and change object properties and convert handwriting to text.
Save function:Take screen shots or area captures of third-party content to include in your interactive
whiteboard file. Save all of your work to a single file as a PPT, PDF or image file on your network, computer hard drive
or USB drive.
Multiple-display capabilities: Enables multiple-display control and content management. Move notes and documents between screens and write on different displays simultaneously.
Email notes: Quickly distribute all notes and action items by emailing them to the team at the end of the meeting.
Integration with Microsoft Exchange: Access attachments, attendee information and meeting details sent in the meeting request and email meeting outcomes to all attendees at the end of the meeting. Feature requires Microsoft Exchange server.
Organise notes: Provides a view of all note pages, which can be sorted by dragging, inserting or deleting pages. Easily reorganise without having to rewrite.
| For single- or dual-display systems | For multiple-display systems |
| Windows XP SP3 or Windows 7 | Windows XP SP3 or Windows 7 |
| 2.0 GHz dual core processor or faster (quad-core recommended) | 3.0 GHz dual core processor or faster (quad-core recommended) |
| 1 GB of RAM for Windows XP, 2 GB of RAM for Windows 7 (4 GB recommended) | 4 GB of RAM or more |
| 1 GB of free hard disk space for minimum installation (additional free space required during installation | 1 GB of free hard disk space for minimum installation (additional free space required during installation) |
| DirectX® 9 capable video card with discrete 256 MB VRAM | DirectX 9 capable video card with discrete 256 MB VRAM |
| At least 10 Mbps wired network or 802.11 a/g/n (100 Mbps wired network or 802.11 n wireless
network recommended) | At least 10 Mbps wired network or 802.11 a/g/n (100 Mbps wired network or 802.11 n wireless network recommended) |
|
Bridgit conferencing software
|
Bridgit conferencing software
Collaborate with remote participants and local teams in real time using Bridgit conferencing software. This fully integrated application makes collaboration more engaging and visual – teams can work on the same content simultaneously and write directly into each other’s documents, regardless of location.

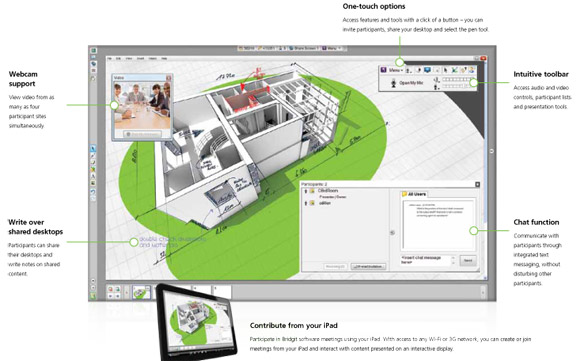

Hilights:
One-touch options: Access features and tools with a click of a button – you can invite participants, share your desktop and select the pen tool.
Webcam support: View video from as many as four participant sites simultaneously.
Write over shared desktops: Participants can share their desktops and write notes on shared content.
Intuitive toolbar: Access audio and video controls, participant lists and presentation tools.
Chat function:Communicate with participants through integrated text messaging, without disturbing other participants..
Key Features:
One-touch desktop sharing:
Share your computer desktop or interactive display with a single touch. You can take control of another participant’s desktop and write over their desktop to demonstrate a solution or provide technical assistance. More than one participant can write at the same time.
Share multiple screens:Use multiple interactive displays in your collaboration sessions, and remote users can see your multiple shared screens simultaneously.
Built-in VoIP: Hear all participants in the conference without purchasing an additional audio-conference bridge or incurring long-distance charges. Bridgit software works with your existing microphone headset or
conference room microphone..
Auto-join capabilities: Join your meetings automatically with Microsoft Exchange integration. The software’s auto-join capabilities ensure that your conferencing session starts at the scheduled time. No need to
manually connect the room to a scheduled meeting.
Simple connection: Conference with anyone, anytime, anywhere – as long as you have an Internet connection. Participants can join meetings through a simple, automatically generated email invitation.
| System requirements |
Client system requirements
Windows XP SP3 or Windows 7 operating systems
- 2.0 GHz processor
- 2 GB RAM
- Broadband Internet connection
Mac OS X 10.6 or 10.7 operating systems
- 2.0 GHz Intel processor
- 2 GB of RAM
- Broadband Internet connection
Server requirements
- 2.0 GHz or faster processor
- 2 GB of RAM
- Windows Server® 2003 R2 or 2008 R2 operating system
- 100 Mbps network interface card (NIC) that supports the TCP/IP protocol
|
|
|
